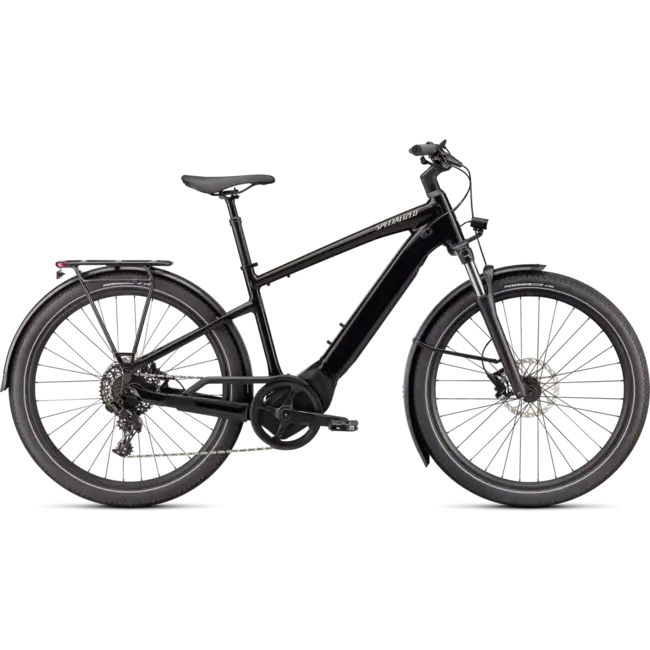

Vado is the vehicle for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.
Redesigned geometry puts you in the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. We took learnings from the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently power from A to B.
Motor
Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
Battery
Specialized U2-710, alloy casing, state of charge display, 710Wh
UI/Remote
MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
Wiring Harness
Custom wire harness
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
Seat Binder
Alloy, bolt-type, 34.9mm
Fork
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Front Brake
SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
Rear Brake
SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
Shift Levers
SRAM NX, 11-speed
Rear Derailleur
SRAM NX, 11-speed
Cassette
SRAM PG-1130, 11-speed, 11-42t
Chain
KMC e11S, 11-speed w/ Missing Link™
Crankset
Custom alloy forged crankarms
Chainrings
Praxis, 48T, 104BCD
Chaincase
Custom chaincover
Rims
650b disc, double-wall alloy, pinned, 32h
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h
Rear Hub
Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Pathfinder Sport Reflect, 650Bx2.3
Rear Tire
Pathfinder Sport Reflect, 650Bx2.3
Inner Tubes
Standard 40mm SV 650Bx1.75-2.4
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Handlebars
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Grips
Specialized Body Geometry Contour, lock-on
Saddle
Rivo Sport, steel rails, 155mm
SeatPost
Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve
Pedals
Specialized Commuter w/ grip tape & reflectors
Headlight
Lezyne Ebike Hecto E65, 210 Lumen, 12V
Taillight
Spanninga Commuter Glow XE, 12V
Rack
Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load
Bike Lock
Turbo System Lock
Fenders
Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
Kickstand
Specialized kickstand, 40mm mount
Bell
Simple bell
Weight
26.4kg (58 lb, 3.2 oz)
Weight Size
MD
